Self Service Equipment Industrial Numeric Keypad Flush Mount Backlit

Product Categories
shenzhen guangzhi technology co., ltd.
Contact Now

Self Service Equipment Industrial Numeric Keypad Flush Mount Backlit

Brand Name : guangzhi

Model Number : GZ-Z010233

Certification : CE, FCC, CE and FCC certified,

Place of Origin : Shenzhen,China

MOQ : 1pcs

Price : To be quoted

Payment Terms : T/T, Paypal

Supply Ability : 100000pcs

Delivery Time : 10-20 work days

Packaging Details : Individual product package size:235*150*50mm, Carton Size:482*320*275;

Application : ATM, self-service equipment, access control, medical equipment, military equipment, marine equipment, mine equipment, etc.

Connection : USB,PS2,R232,8P

Material : stainless steel

Key travel : 0.45mm

Storage temperature : -40°C to +85°C (-40°to 185°F), -40°C (-40°F) to +70°C (158°F) Rear adhesive 3M467, etc.

Contact Now

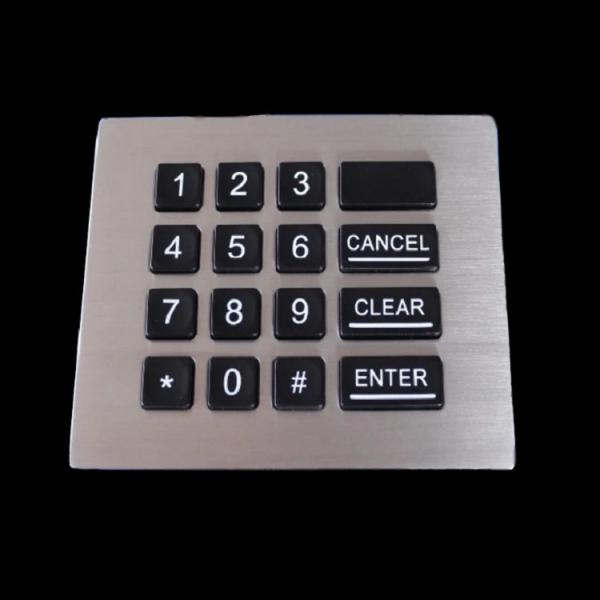

New design of metal stainless steel keyboard 4x4 16 button keyboard metal digital ATM keypad

Product Name: industrial metal keyboard

Product specification: 120*102mm

FEATURES
1. 16 Keys vandal-proof IP65 stainless steel matrix keypad.10 number keys, 6 function keys.
2. Keys are good touch feeling and accurate data input without any noise.
3. Easy to install and maintenance; flush mount.
4. Our panel and buttons are made of stainless steel 304, which is highly rugged, vandal-proof, against corrosion, weather-proof.
5. Fonts and pattern of key surface can be customized.
6. The keypad is waterproof, anti-drilling and removal-proof.
7. The keypad uses double-sided PCB and mental dome; Good contact.
8. The labels on the buttons are made by etching, and fill in high strength paint.

USER OPTIONS
1. Surface treatment of frame and keys: satin-finished or mirror polish.
2. Connectors:USB, PS / 2, XH socket,PIN,RS232,DB9.

3. Labels on the buttons can be customized by etching.

APPLICATION

self-service library self-service kiosk CNC machine
household applications oiling machine charge spot
industrial telephone ATM access control
ticket machine vending machine medical facility
security system fingerprint attendance machine

PARAMETERS
Model number GZ-Z010233
Defend Grade IP65
Keys 16 keys
Vandal resistant IK09
Electrical lifetime > 5 years
Contact resistance 200 ohm (max)
Current Rating appr. 30mA
Power supply + 5V +/- 5%
G.W. 0.20kg approx
Dimensions 100mm * 100 mm*5.5mm
Frame/keys materials Stainless steel
life span ≥2 million
Elasticity of key 2.5-3N
Key travel ≤100Ω
Atmospheric pressure 60-106Kpa
Operate Temperature -40℃~+85℃
Travel distance 0.45mm

APPLICATIONS -

  • Marine industry(such as access control system),
  • industrial automation device
  • military devices
  • coal mine area
  • metallurgy
  • electricity
  • transportaion and other special industries.

Why Choose us?

1, Professional manufacturer of experience in rugged input device for over 5 years.

2, Reasonable price and fast response

3, Flexibility in customization and size of order

4, OEM and ODM capability

5, Trusted suppliers of many world-class famous brands in the industry
